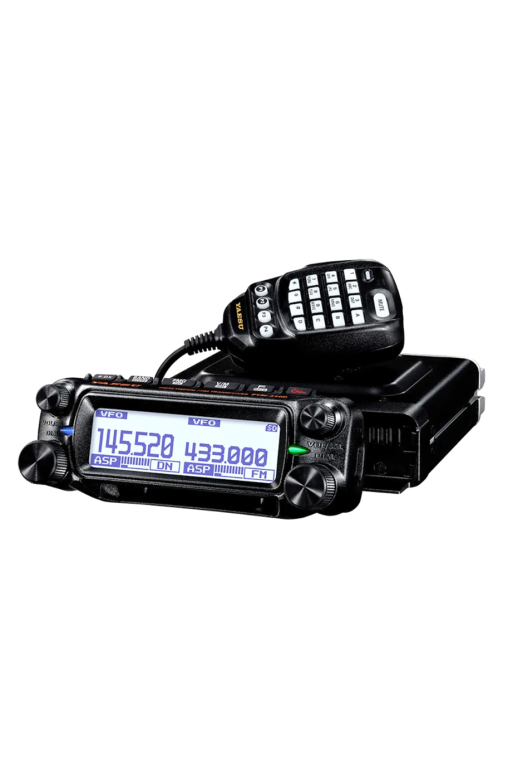

Yaesu FTM-310ASP

The FTM-310DE series from Yaesu provides true dual-band operation with two independent receivers. Signals can be received simultaneously on different bands or even within the same band – including C4FM/C4FM dual receive (V/U, V/V, U/V, U/U).

The transmitter delivers up to 55 W on VHF and 50 W on UHF, with selectable power levels of 25 W or 5 W. A robust heat sink with Funnel Air Convection Conductor (FACC) ensures stable performance even during extended operation.

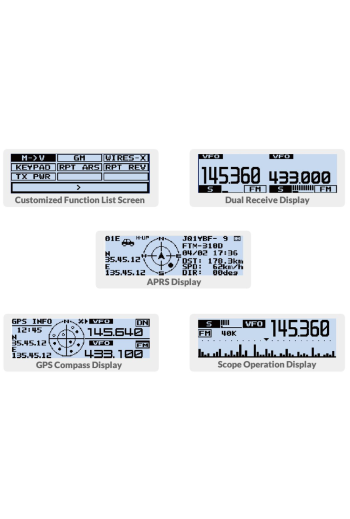

For clear and powerful sound, the set is equipped with the Acoustic Enhanced Speaker System (AESS): one 3 W speaker in the control head and another 3 W speaker in the main unit provide a total of 6 W audio output. The information is shown on a crisp full dot-matrix display.

Core Features of Both Models

• C4FM digital mode with low bit error rate and Yaesu error correction technology

• Super-DX: enhanced receive sensitivity in both digital and analog modes

• PMG (Primary Memory Group): simultaneous monitoring of up to five stored frequencies with real-time bar graph

• MAG (Memory Auto Grouping): automatic or user-defined grouping of memory channels

• CFL (Customized Function List): quick access to up to nine preferred menu items

• Band Scope with up to 47 channels, switchable with dual receive

• AMS (Automatic Mode Select): automatic switching between C4FM digital and FM signals

• DG-ID (Digital Group ID) and GM (Group Monitor) for targeted group communication

Exclusive to FTM-310DEASP

• ASP (Audio Signal Processing): advanced signal enhancement in FM mode

  • AUTO mode: automatically activates when weak signals are detected

  • MANUAL mode: manual on/off control

  • Note: The FTM-310DE does not include ASP. It can only be added via the optional SPU-1 module.

Additional Features

• 66-channel GPS receiver for position data and APRS® (1200/9600 bps)

• Full support for Yaesu WiRES-X

• Wide receive coverage: 108 MHz – 550 MHz (MAIN/SUB)

• Bluetooth® operation with optional BU-5 module

• Flexible mounting of the control head using the SJMK-500 swing-head kit

• Microphone connection either on control head or main unit
