Hari Windom 80-10 High Power

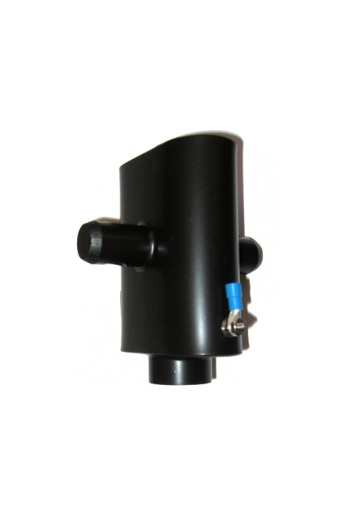

Well renowned antenna for the harmonic bands 80, 40, 20, 17, 12 and 10m. Somewhat more bandwidth then a dipole, good SWR on all bands. At space restricted environments the antenna can be installed at an angle or non straight layout. Antenna wire of PVC coated steel wire. Includes balun 1:6, max, power load 1000 Watt SSB/CW, connector PL. The balun is located at one third of the antenna length.
.
The length of the wires is 9,5m for the longer part and 4,8m for the shorter part, incl. the loops for the end isolators. The new wires are connected to the balun in parallel to the existing wires and should be installed as far apart from the existing wires. Either sloped to the bottom like an inverted Vee or to the sides, forming a crossed dipole.
Antenna Type | Omni-directional Antenna |
---|---|
Design of antenna | Windom |
Mono-/Multiband | Multiband |
Max. Power [W] | 1000 W |
Impedance (Ω) | 50 Ohm |
Length [m] | 42 m |
Supported Bands | 10m 12m 17m 20m 40m 80m |
Connector | PL female |
Weight [kg] | 1.30 kgs |
